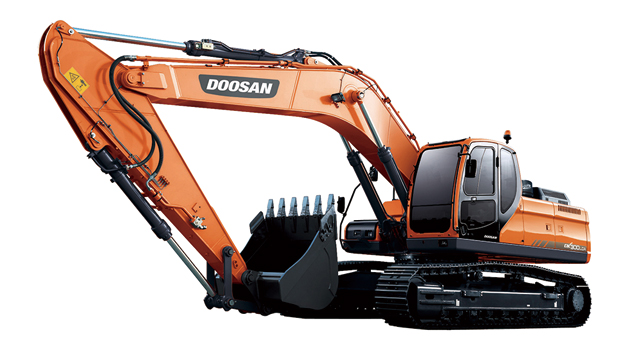

DOOSAN DX340LCA EXCAVATOR
PROVIDING OPTIMUM VALUE
TO THE END USER
  • Improved ergonomics, increases comfort and excellent all round visibility ensuring a safe and pleasant working environment.
  • Improved reliability is achieved through the use of high performance materials combined with new methods of structural stress analysis, and leads to increased component life

Comfort

The work rate of the hydraulic excavator is directly linked to the performance of its operator. DOOSAN designed the DX 340LCA by putting the operator at the center of the development goals. The result is significant ergonomic value that improves the efficiency and safety of the operator.

Performance

DX340LCA is designed for tough and heavy work environments where need massive force. The performance of the DX340LCA has a direct effect on its productivity.

Reliability & Maintenance

Doosan uses computer- assisted design techniques, highly durable materials and a quality engineered structure. Our research and development engineers test all products under the most extreme conditions. Durability, reliability and product longevity are Doosan's top priorities.

Specifications

Classification Unit DX340LCA
Operating Weight ton 34.4
Bucket Capacity (SAE) m3 1.49
Engine Rated Power (Net Power) kW(PS)/rpm 185(247) / 1800
Engine Max. Toque kgf.m/rpm 114 / 1400
Digging Force (ISO) Bucket (Nor. / Press. Up) ton 23.4 / 24.8
Digging Force (ISO) Arm (Nor. / Press. Up) ton 16.9 / 17.9
Max. Digging Reach mm 11168
Max. Digging Depth mm 7533
Max. Digging Height mm 10345
Overall Length mm 11280
Overall Width mm 3280
Overall Height mm 3360
